CPA 5-LD-8040 Brackish Water Membrane High Rejection 8 Inches For Reclaimed Water

Brand Name : Keensen

Model Number : BW-8040LFR

Certification : ISO9001, NSF61, Halal

Place of Origin : China

MOQ : It Depends, Trial order or Urgent order not limited by MOQ

Payment Terms : L/C, T/T

Supply Ability : 100000 pieces per year

Delivery Time : 3-15 work days

Packaging Details : CARTON + PALLET

Membrane Type : Reverse Osmosis Membrane

Membrane Material : Polyamide

Membrane Size : 8 inches

Operating Pressure : 225 psi

Ph Range : 2-11

Salt Rejection : 99.7%

Flow Rate : 10500GPD

Quantity Per Pallet : 28 Pieces

Quantity Per 20/40ft Container : 400/880 Pieces

Contact Now

Low Working Pressure Equivalent CPA 5-LD-8040 Brackish Water High Rejection Membrane

Aromatic polyamide composite Fouling Resistant brackish water series of RO reverse osmosis membrane element are ideal for reverse osmosis plant managers and operators dealing with challenging waters and wastewaters who are seeking an advanced membrane treatment with good water purity, improved fouling resistance and low energy consumption.

CPA 5-LD-8040 Brackish Water Membrane High Rejection 8 Inches For Reclaimed Water

Specifications

Applications

  • Production wastewater treatment, reclaimed water recycle, sewage wastewater treatment etc.
  • Industrial applications for power, steel & iron, electroplating, petrochemical, coal to chemicals, textile and dyeing, pulp & paper, landfill leachate etc.
  • Feed TDS below 10000mg/L.

Benefits

  • Improved Feed Spacer and Thicker Channel
  • Provides the most effective cleaning performance, robustness and durability due to its widest cleaning pH range (1 – 13) and chemical tolerance
  • Durability Upgraded
  • Large Flux

Specifications

Model

Active Area

ft2(m2)

 Feed Spacer Thickness(mil) Permeate Flow Rate GPD(m3/D) Stabilized Salt Rejection (%)
BW-8040LFR 400(37.2) 34 10500(39.7) 99.75

Standard Test Conditions

Solution

Temperature

(℃)

 pH

Operating Pressure

psi(MPa)

Recovery

(%)
2000mg/L NaCl 25 7.5-8.0 225(1.55) 15

Individual flow rate may vary±15%

Element Dimensions and Operating Limits

Model Length Diameter Permeate Tube inner Diameter Permeate Tube Extension Length
inch mm inch mm inch mm inch mm
8040 40 1016 7.9 201 1.12 28.5 / /

Maximum Operating Pressure

 600psi(4.14MPa)
Operating Temperature Range 0-45℃
Maximum Feed Silt Density Index (SDI15) 5.0

Free Chlorine Tolerance

 0.1mg/L
pH Range,Continuous Operation 3-10
pH Range,Short-Term Cleaning 1-13
Maximum Element Pressure Drop 15psi(0.1MPa)

Professional Export Packing Method.

CPA 5-LD-8040 Brackish Water Membrane High Rejection 8 Inches For Reclaimed Water

Leading Inspection Equipment from USA

CPA 5-LD-8040 Brackish Water Membrane High Rejection 8 Inches For Reclaimed Water

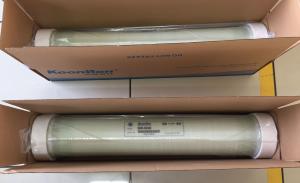

Membranes Picture

CPA 5-LD-8040 Brackish Water Membrane High Rejection 8 Inches For Reclaimed Water
